Quick Details
| Place of Origin: | Jiangsu, China | Brand Name: | JISE |
Model Number: | Narrow aisle racking | Type: | Narrow aisle racking |
Material: | Steel Q235B, Q235D, SS400 | Feature: | Corrosion Protection |
Use: | Warehouse storage | Certification | CE, ISO9001 |
Size: | Customized | Load capacity: | 1000-4000kg per level |
Color: | blue, orange or customized | Pitch | 75mm |
Surface treatment: | Electrostatic spraying | Keyword: | Narrow aisle racking |
Structure: | Assemble | MOQ | 50 sets |
Product Description

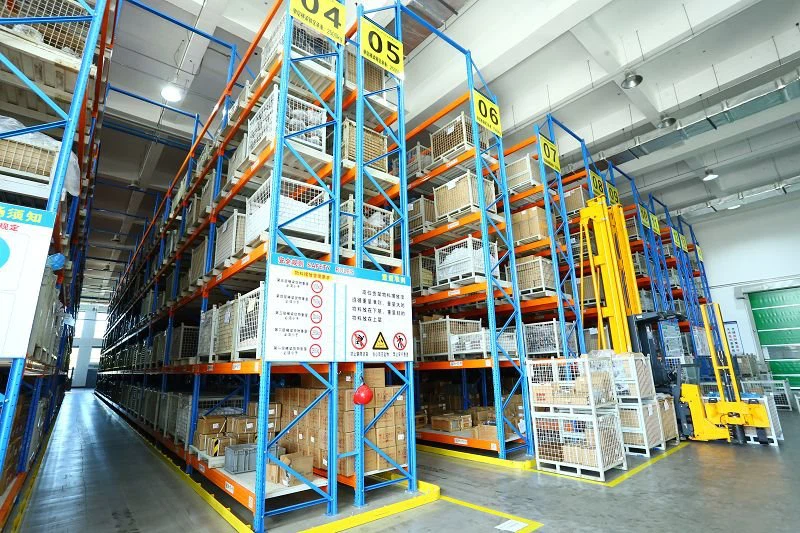

Narrow aisle racking is called VNA pallet racking and warehouse VNA and narrow pallet racking. It used pallet storage warehouse. It takes pallet racking as main structure, but with guide rails installed on the two bottom sides of the aisle. The guide rails are made from unequal angle steel. Specialized high forklifts are needed to slide along guide rails. The aisle is slightly wider than pallet to realize high density storage. VNA succeeded the advantage of pallet racking: all goods are 100% selective by forklift trucks at any time. High access efficiency and high density brings high productivity and cost benefit to VNA logistics center.
VNA pallet racking can improve warehouse utilization with approx. 20%. But warehouse VNA requires special forklift which means more cost. The biggest difference between VNA and double deep pallet racking is they use difference forklifts, and double deep pallet racking stores two pallets deep in a double entry rack with no guide rails.
Product Parameters
VNA pallet racking systems are designed to meet the new generation of warehouses up to 17 meters high, designed around the operating tolerances of Very Narrow Aisle (VNA) equipment with aisles marginally wider than the load. Such structures must have a high level of rigidity and accurate manufacturing tolerance.
VNA aisles are much narrower than aisles of ordinary pallet racking with the width approx. 1600mm-2000mm, which largely improved space efficiency. VNA requires skilled drivers of special forklift rotating trucks to be more careful.
Guide rails for VNA are approx. 200mm high, which can be set during civil work or during racking installation with protect plate. With guidance of the rail, accident risks can be reduced and the requirement of driving skills is also lower than drive-in pallet racking.
Fire suppression and seismic need to be considered. Hard wearing and very flat floor designed for heavy static / live loads are required.

Narrow aisle racking Beam and post Distributed Loading Chart:
| Post Loading Table | |
80x60x2.0 9400KG/BAY | 100x70x1.8 11800KG/BAY |
90x70x1.8 10000KG/BAY | 100x70x2.0 13500KG/BAY |
90x70x2.0 11800KG/BAY | 100x70x2.3 15000KG/BAY |
90x70x2.3 14000KG/BAY | 100x70x2.5 16300KG/BAY |
Beam length (mm) | 80*50*1.5 | 100*50*1.5 | 110*50*1.5 | 120*50*1.5 | 140*50*1.5 | 160*50*1.5 |
1500 | 2933 | |||||
1800 | 2444 | 3300 | ||||
2000 | 2166 | 2970 | ||||
2300 | 1638 | 2583 | 2940 | |||
2500 | 1386 | 2340 | 2705 | 3043 | ||
2700 | 1188 | 2006 | 2504 | 2818 | 3483 | |
3000 | 879 | 1483 | 1857 | 2280 | 3135 | 4000 |
3300 | 726 | 1226 | 1535 | 1884 | 2717 | 3500 |
3600 | 561 | 948 | 1187 | 1456 | 2101 | 2900 |
3800 | 420 | 709 | 888 | 1089 | 1571 | 2600 |
4000 | 379 | 640 | 801 | 983 | 1418 | 2400 |
